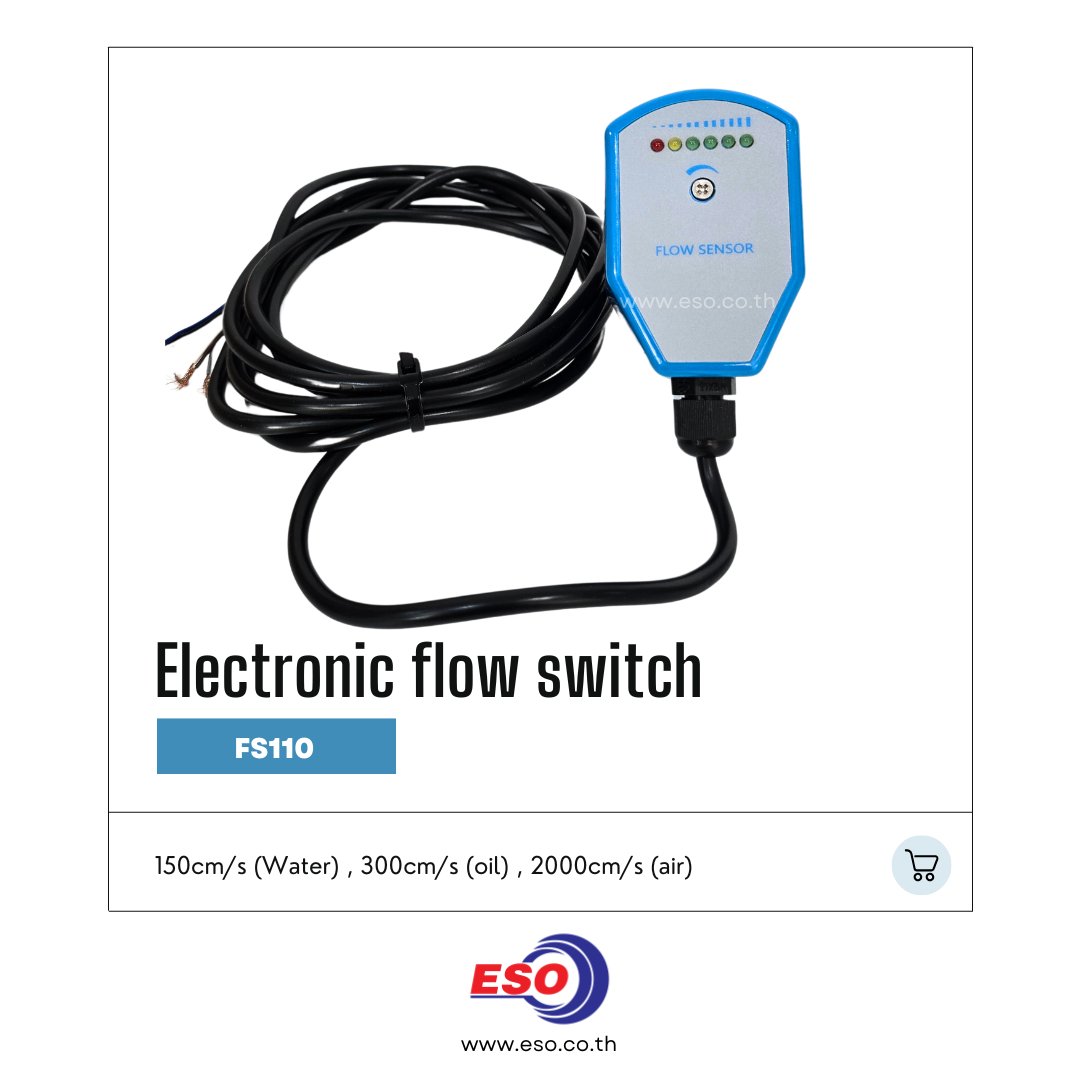

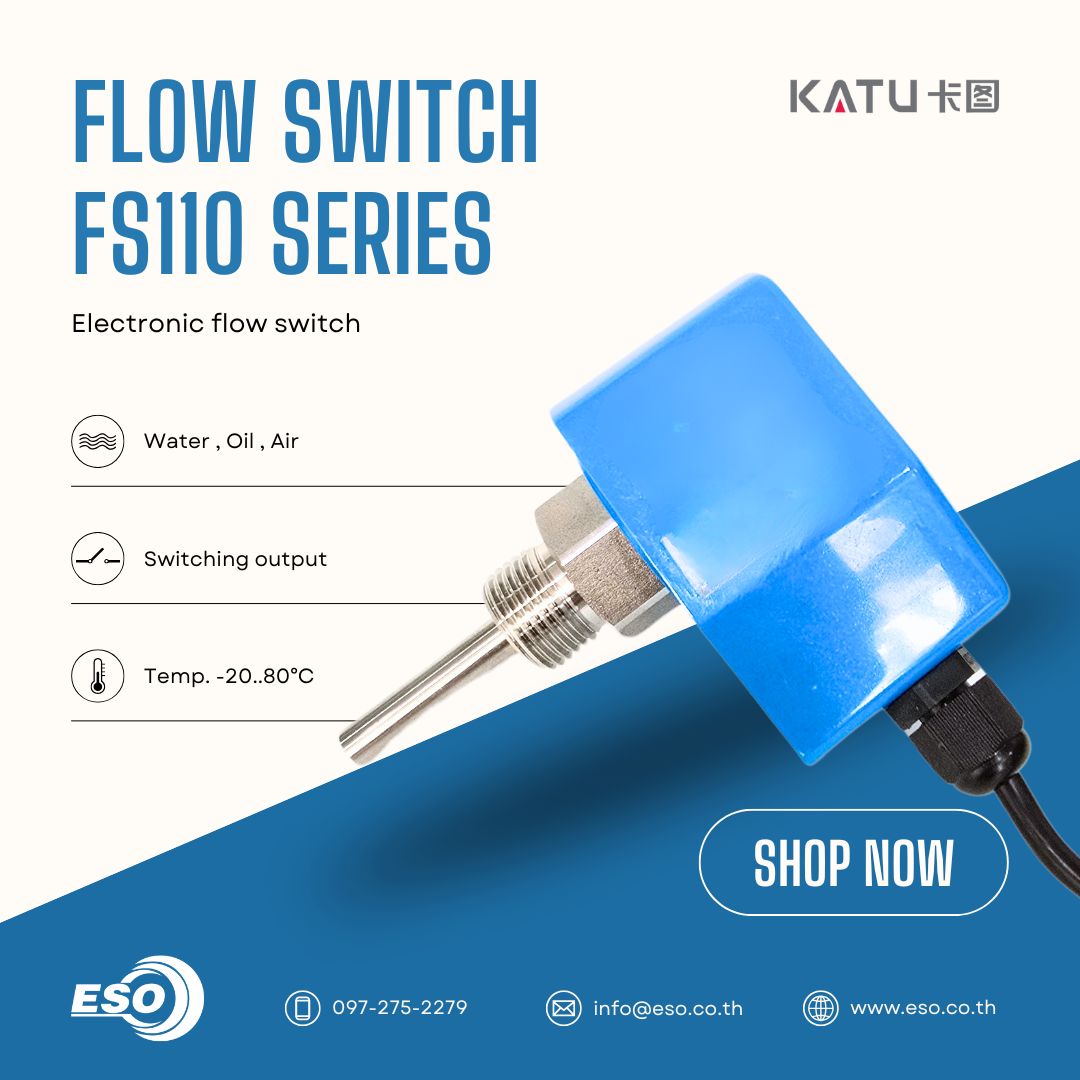

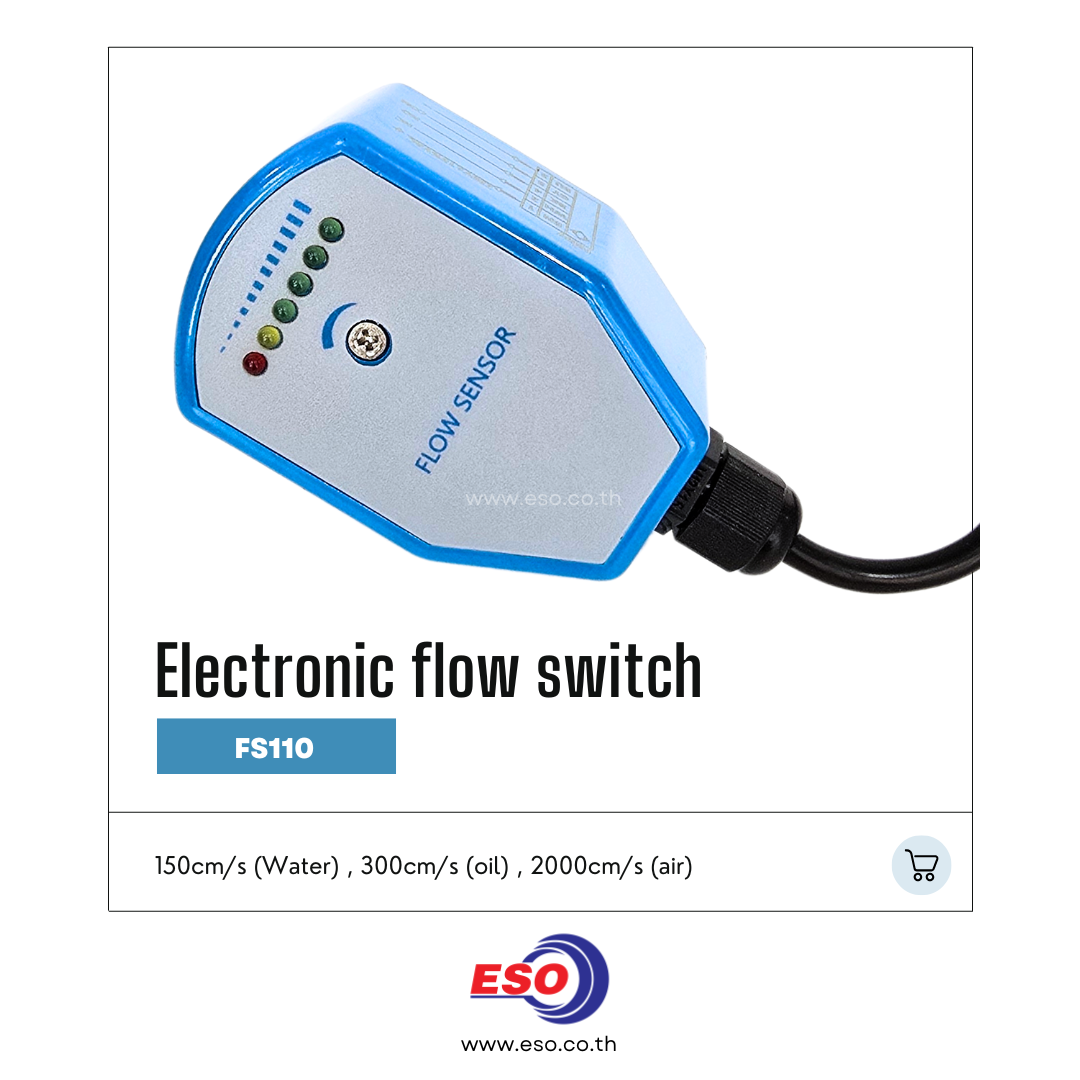

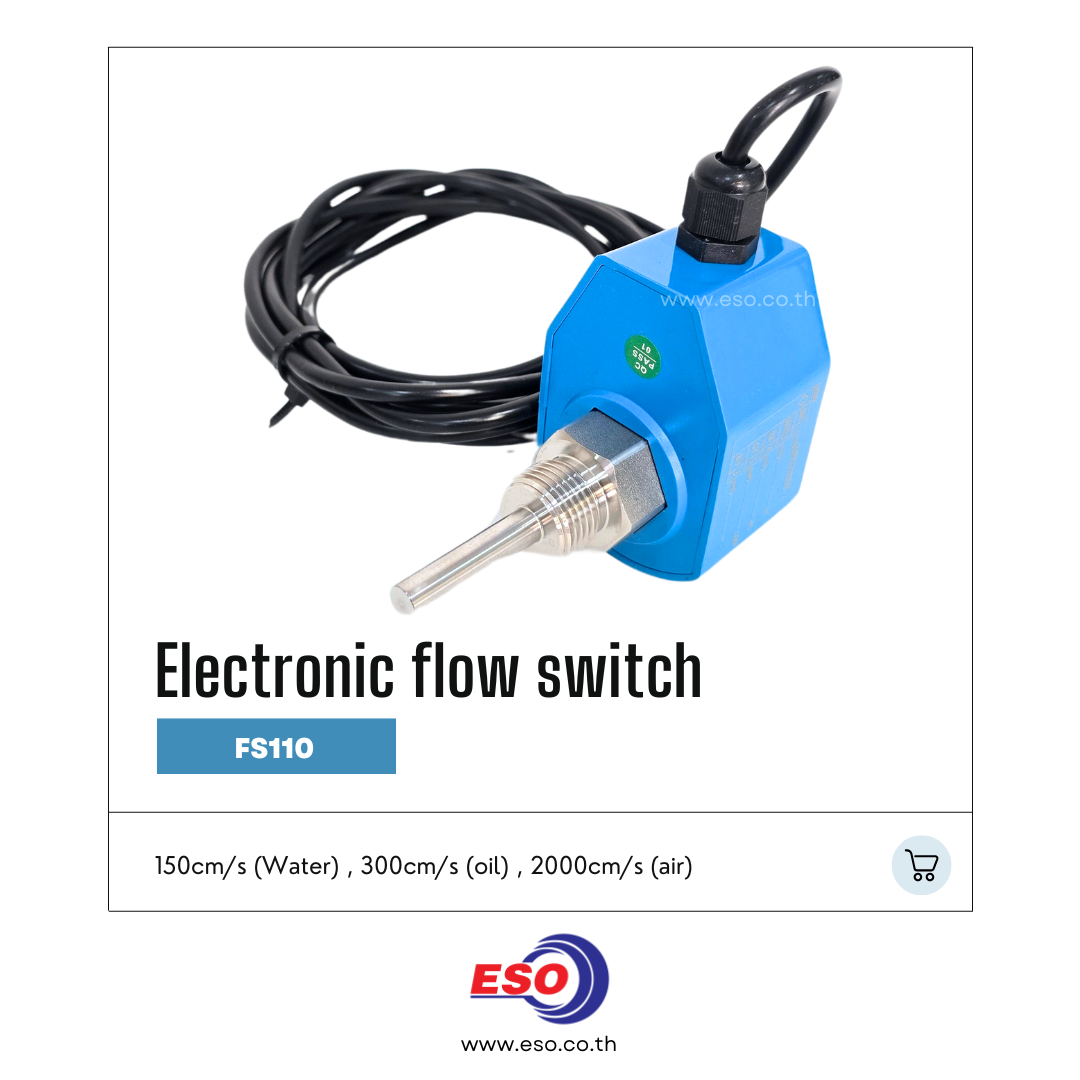

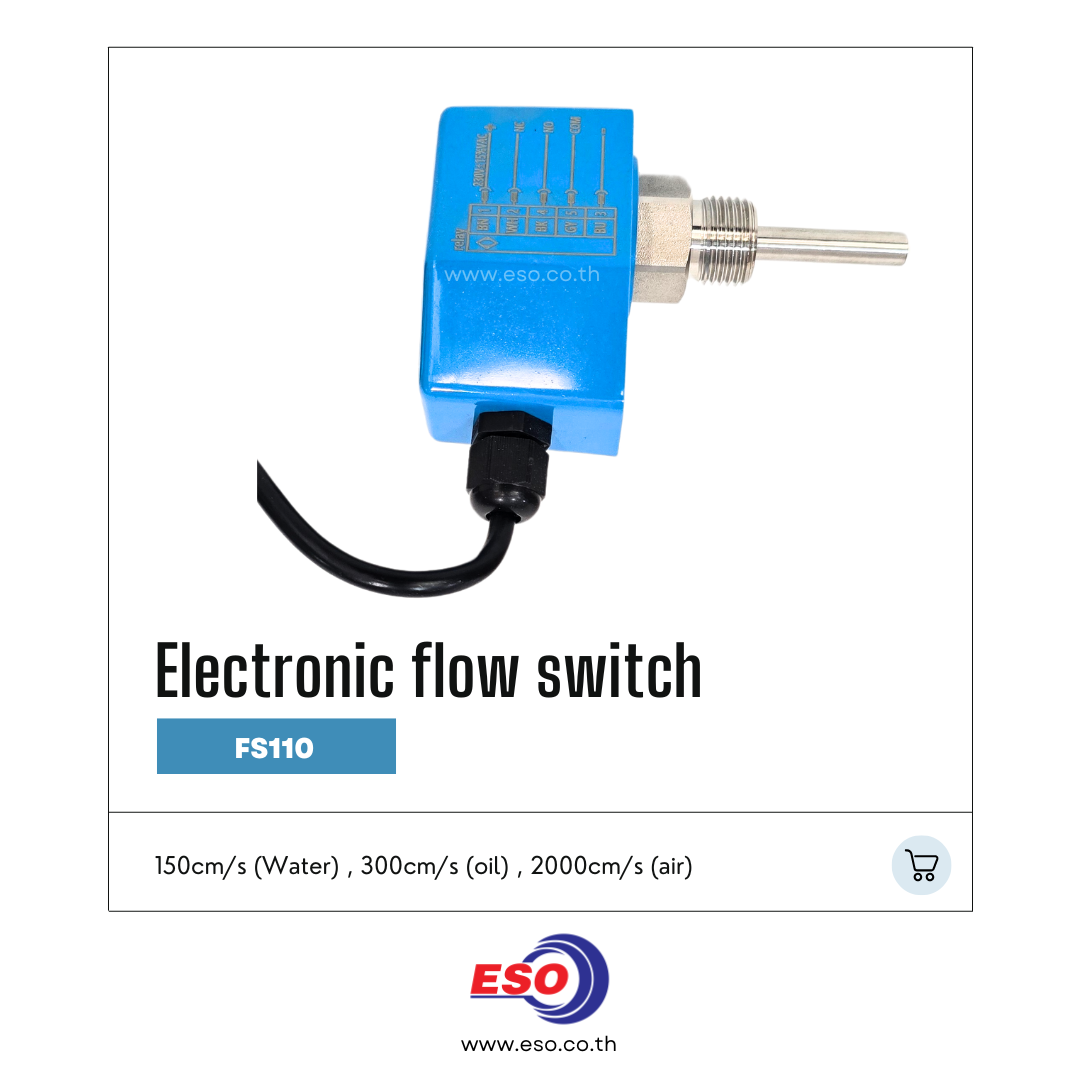

Flow Switch รุ่น FS110 Series สวิทซ์ตรวจจับการไหล ย่านการตั้งค่า 1..150cm/s (น้ำ) / 3..300cm/s (น้ำมัน) / 20..2000cm/s (ลม), Output contact , AC220V , ขนาดเกลียว G1/2" แบรนด์ KATU
หมวดหมู่ : FLOW METER ,  Flow switch ,
แบรนด์ : KATU
Share
Technical information | |
Measuring range | 1..150cm/s (Water) |
3..300cm/s (Oil) | |
20..2000cm/s (Air) | |
Medium | Water / Oil / Air |
Medium temperature [°C] | -20..80 |
Temperature gradient | <4°C/s |
Response time | 1-13s , Typical values 2s |
Innitialization time | 8s |
Electrical data | |
Supply voltage | 230VAC ±15% |
Contact rating | 400mA(PNP/NPN) , 4A(Relay) |
No-load current | Maximum 80mA |
Protection | Invert . Short circuit . Overload |
Outputs | |
Output Type | Relay SPDT |
Contact rating | 4A (Relay) |
Operating environment | |
Operating Temp. [°C] | -20 ... +80°C |
Operating Humid. [%RH] | 5..90 (Non-condensing) |
Storage temperature [°C] | -20..100 |
Operating pressure | 100 bar |
Proection | |
IP rating | IP67 |
Mechanical data | |
Housing material | PBT |
Probe material | Stainless steel |
Process connection | Thread G1/2" |
Electrical connection | Cable 2m |
Display | |
Display | LED |
Adjustment of the switch point | potentiometer |
ลักษณะการนำไปใช้งาน
เซนเซอร์วัดอัตราการไหลหรือตรวจจับการไหลแบบสวิทซ์ FS110 Series (Electronic Flow Switch) จากแบรนด์ KATU ออกแบบมาสำหรับงานอุตสาหกรรมตัววัสดุและบอดี้มีความแข็งแรงทนทาน โพรบวัดทำจากวัสดุสแตนเลสสตีล สามารถตรวจจับการไหลได้ทั้งน้ำ น้ำมัน และ ลม โดยใช้หลักการวัดแบบการนำพาความร้อนเพื่อตรวจจับการไหลของตัวกลาง
FS110 Series มีให้เลือกชนิดเอาท์พุตได้หลากหลายทั้งแบบ Output Transistor NPN/PNP หรือจะเป็น Dry contact relay นิยมนำสวิทซ์ตรวจจับการไหลไปใช้กับกระบวนการผลิตที่มีมอเตอร์ปั้มน้ำเพื่อตรวจจับว่ามีตัวกลางไหลผ่านป้องกันไม่ให้มอเตอร์เกิดโอเวอร์โหลดเสียหายในกรณีที่ไม่มีโหลด หรือจะตรวจจับการไหลของน้ำมันในระบบไฮดรอลิกส์ต่างๆ และตรวจจับการไหลของอากาศในระบบ HVAC และระบบปั้มลมต่างๆ เป็นต้น
___________________________________________________________________________________
FS110 Series DATASHEET Download
